How to re-provsion the Universal Connector

In this guide we will learn how to re-provision a Universal Connector

Re-provisioning an equipment connected to WeldCloud is useful everytime you want generate a new certificate for a secure data communication with WeldCloud.
Please follow steps below to reprovision your Universal Connector.

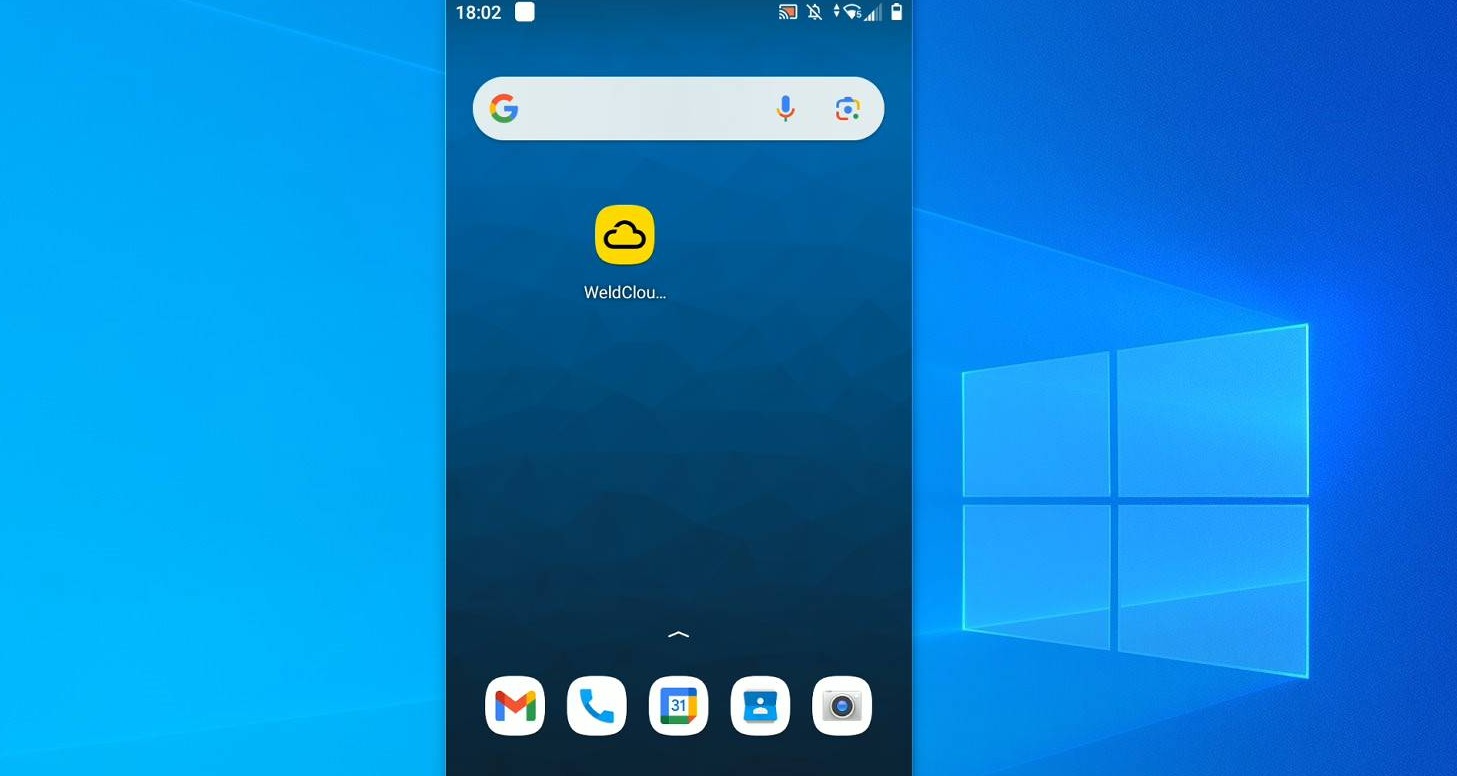

1. Open WeldCloud Link on your Android device

Open WeldCloud Link on your Android device

2. Tap "LOG IN" and use your WeldCloud apps credentials

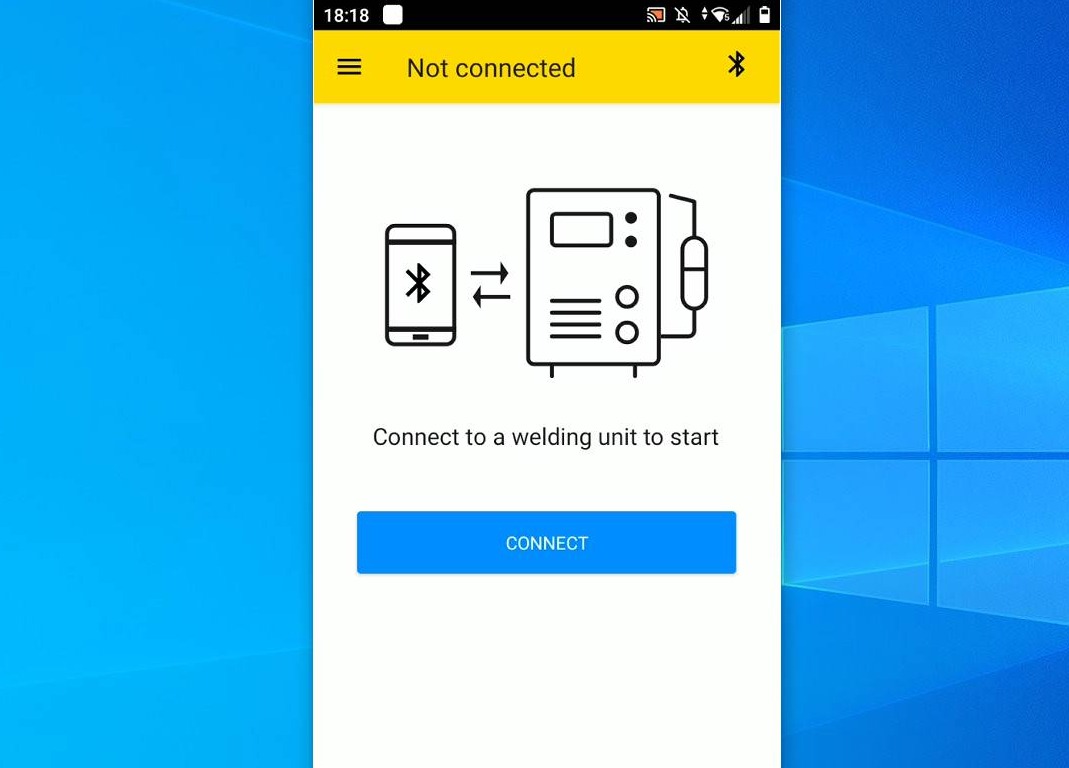

3. Tap on the hamburger menu in the top left corner

Tap on the hamburger menu in the top left corner

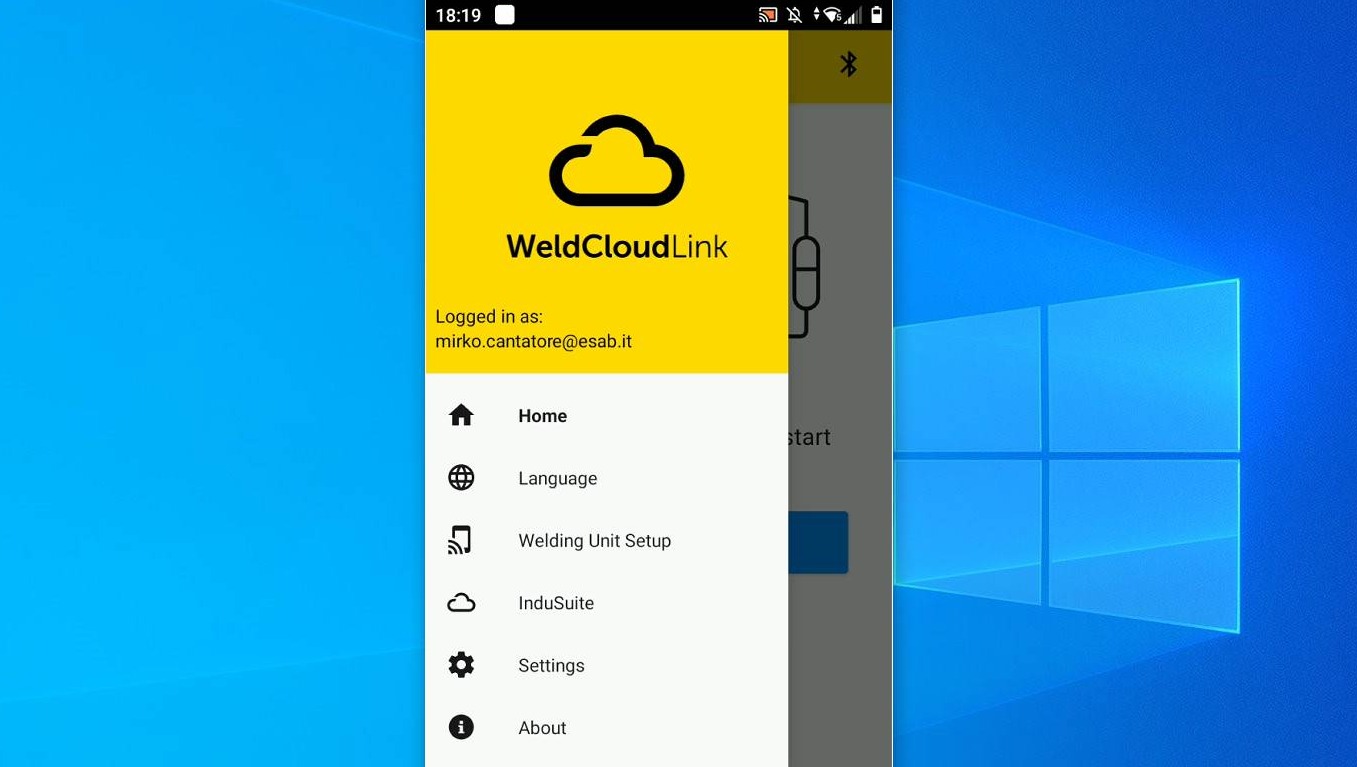

4. Tap "Welding Unit Setup"

Tap "Welding Unit Setup"

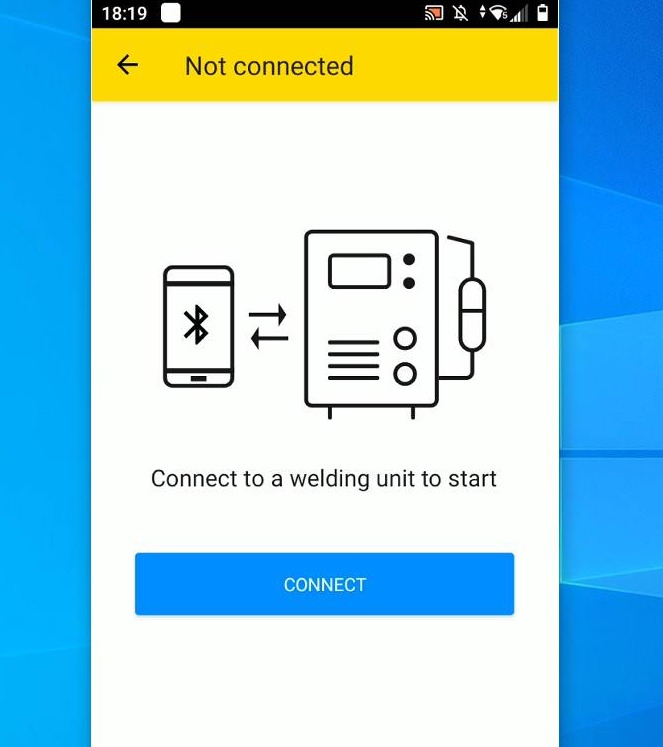

5. Tap "CONNECT"

Tap "CONNECT"

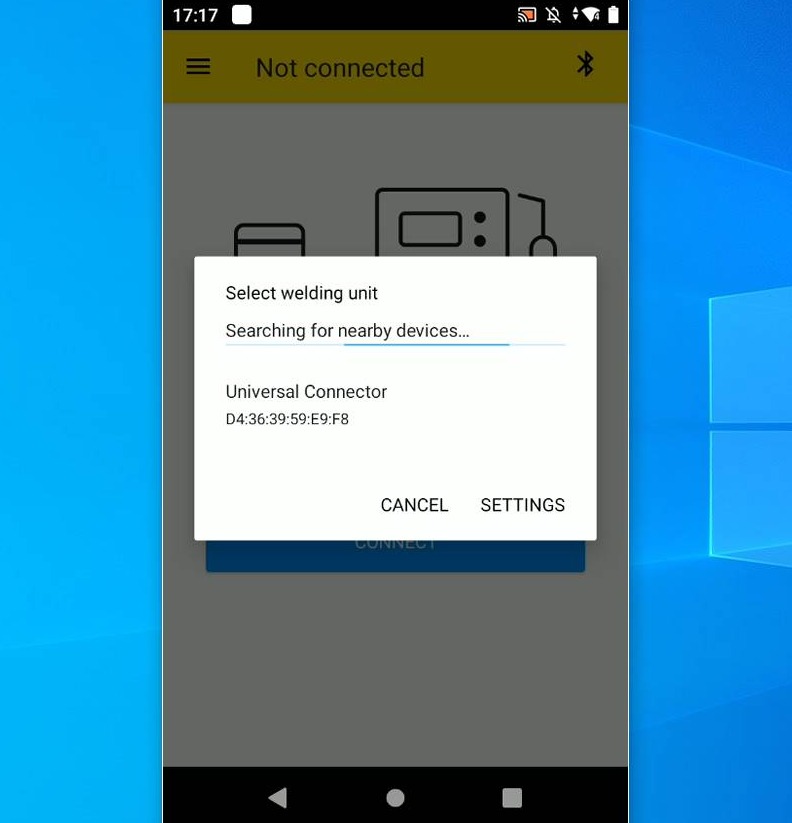

6. Available WeldCloud devices will be displayed. Tap on the Universal Connector you want to re-provision

Available WeldCloud devices will be displayed. Tap on the Universal Connector yo

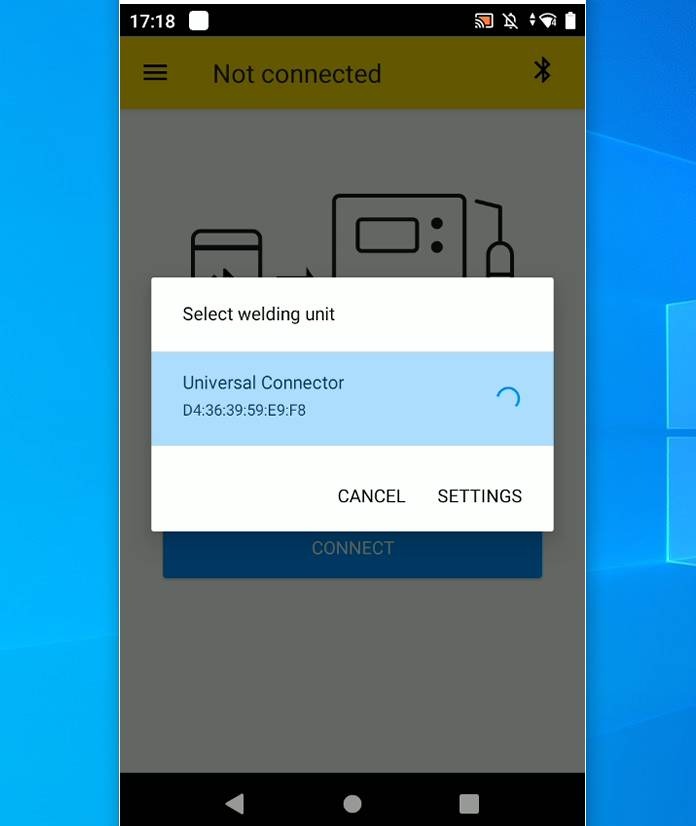

7. Wait for Bluetooth connection to be ready

Wait for Bluetooth connection to be ready

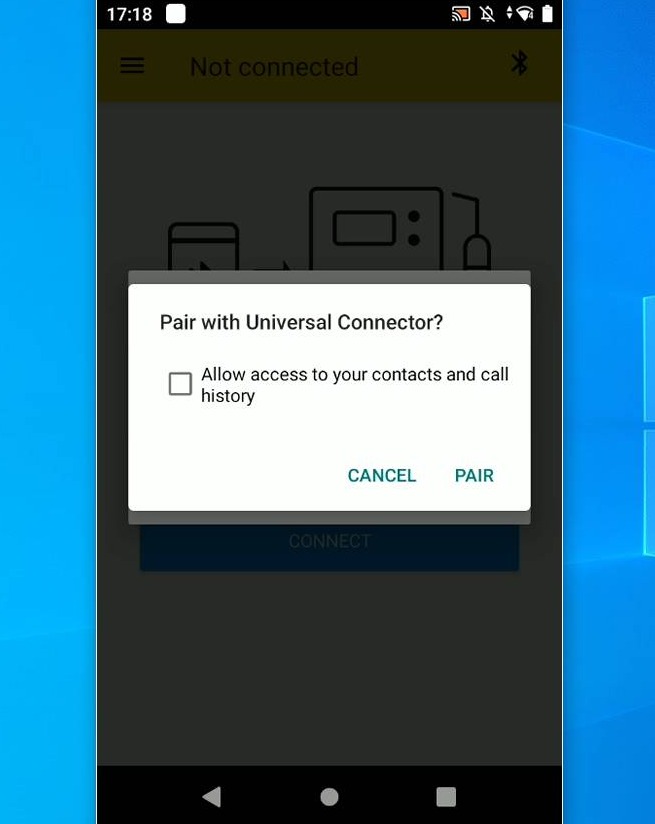

8. Tap on "PAIR"

Tap on "PAIR"

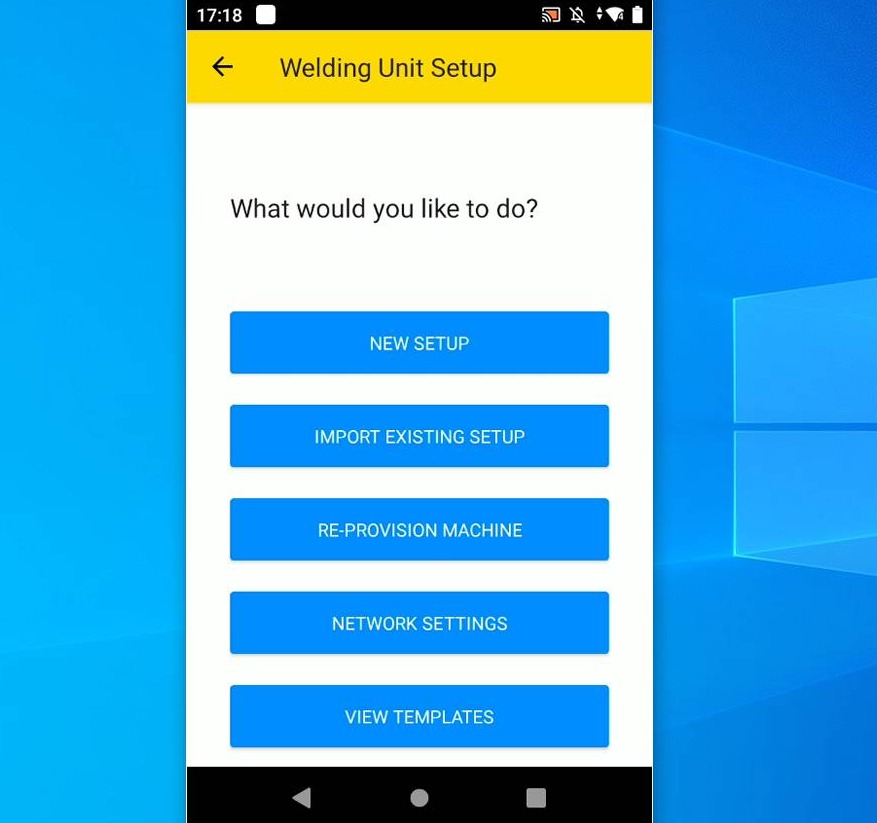

9. Setup menu will pop up

Setup menu will pop up

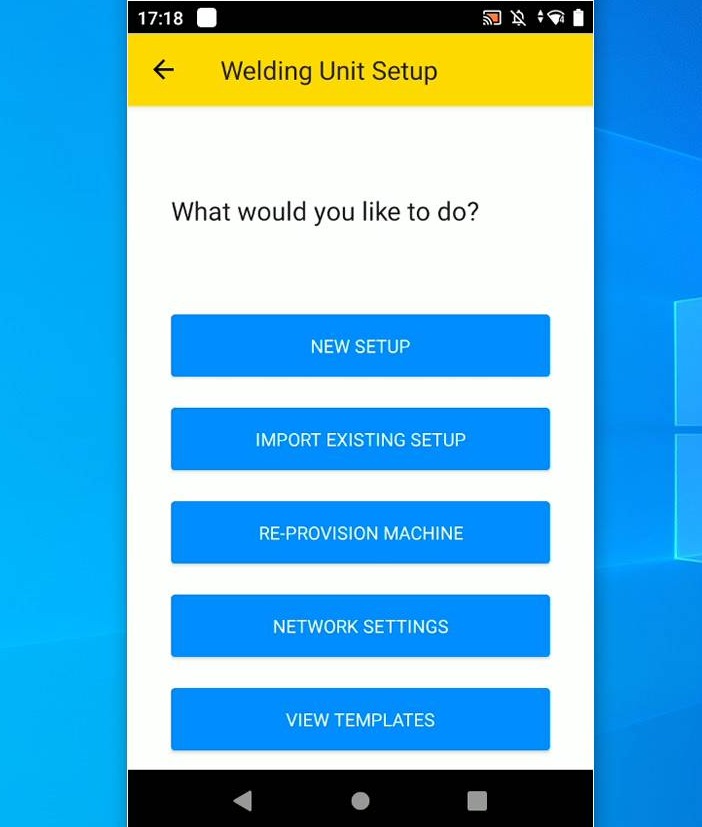

10. Click "RE-PROVISION MACHINE"

Click "RE-PROVISION MACHINE"

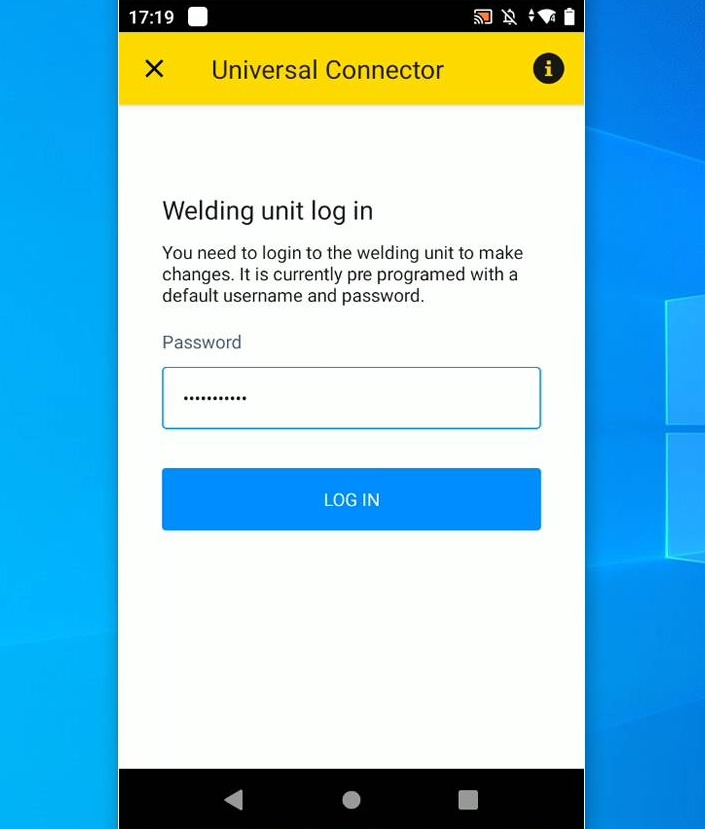

11. Type Universal Connector password (hint: you have changed default password at first configuration) and click "LOG IN"

Type Universal Connector password *(hint: you have changed default password at f

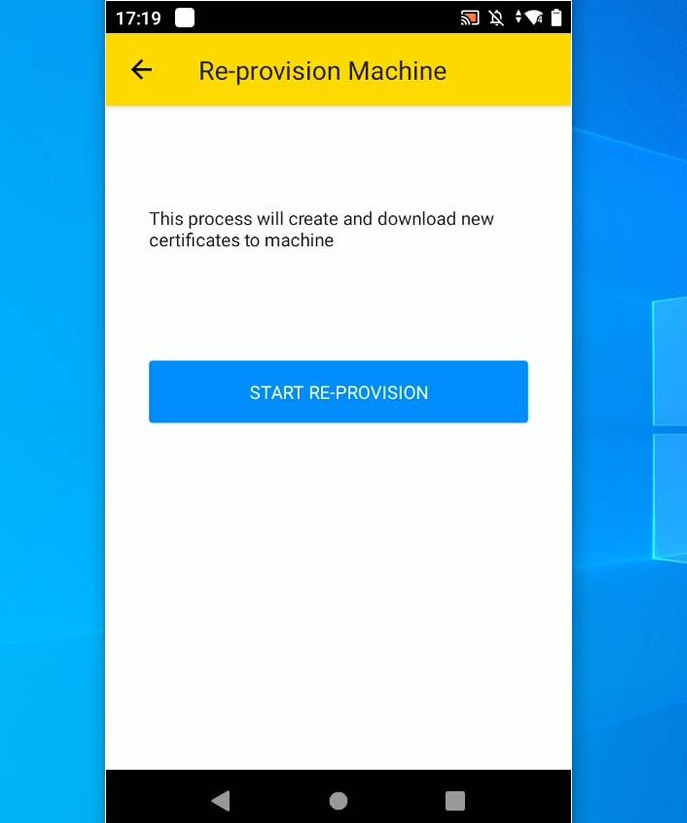

12. Click "START RE-PROVISION"

Click "START RE-PROVISION"

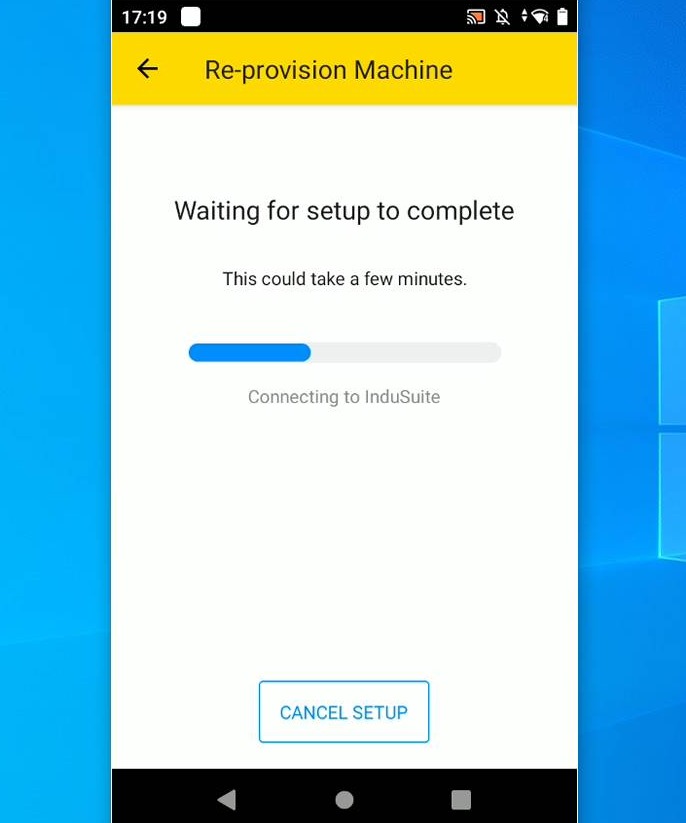

13. Wait for the re-provisioning process to complete

Wait for the re-provisioning process to complete

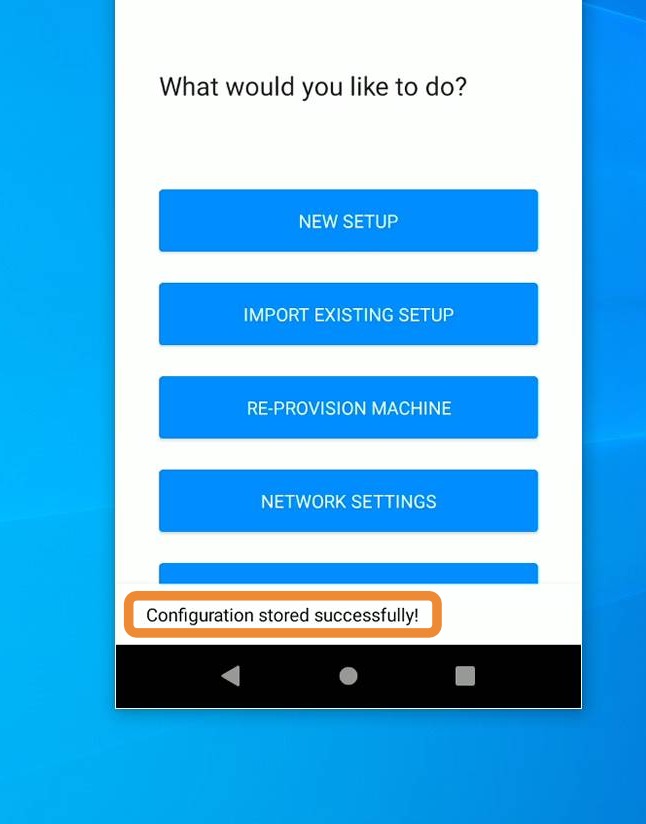

14. WeldCloud Link will notify you once the process is done

WeldCloud Link will notify you once the process is done

Updated on: 09/07/2026
