Compare Welding Parameters to the WPS's Range

After assigning a welding machine to a specific weld, all weld sessions from that machine are tagged to this weld. You can then compare the actual welding parameters to the range defined in the WPS. This works for both single-torch and multi-torch weld sessions.

Procedure

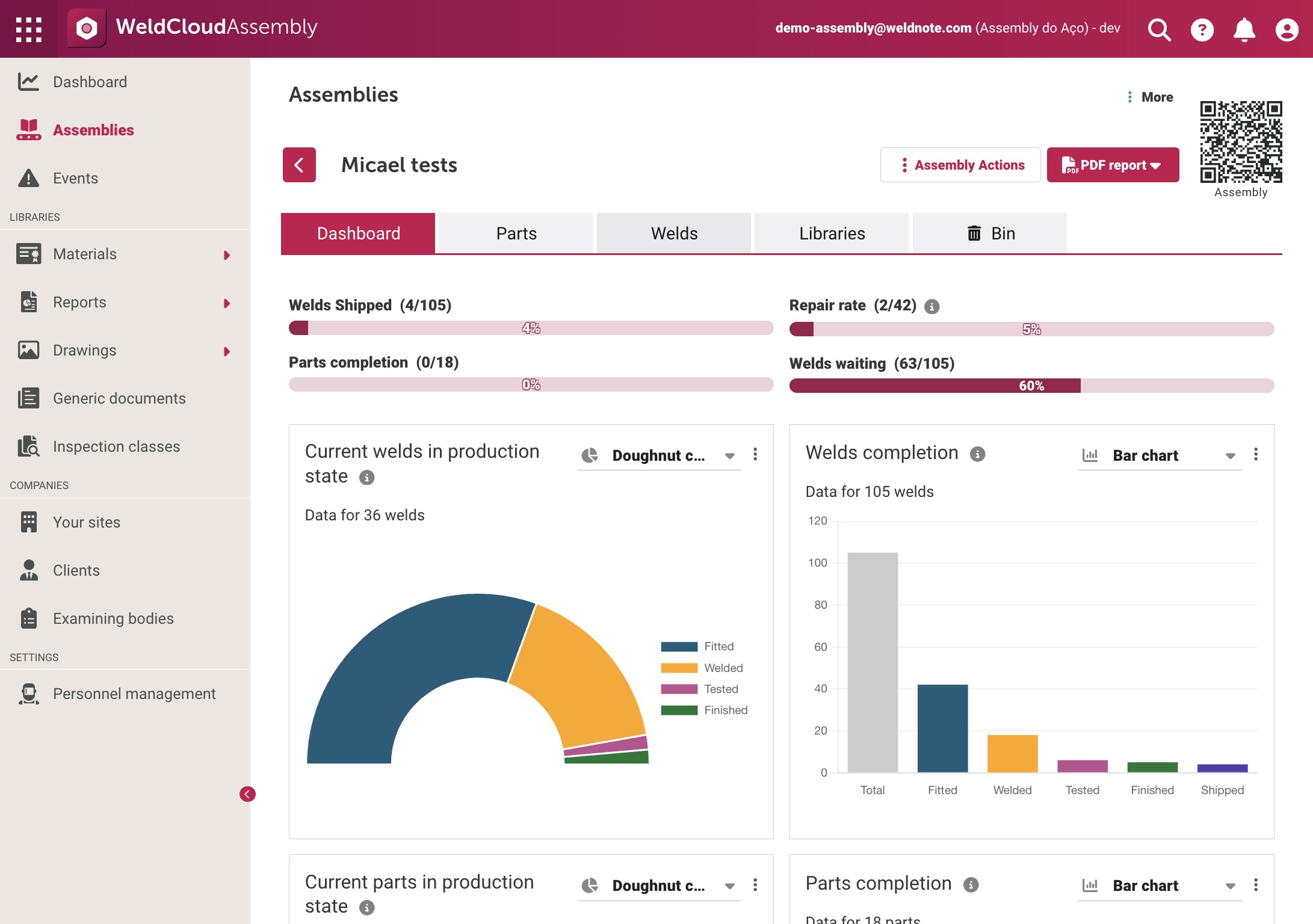

1. After entering your Assembly, click "Welds" to select the desired Weld

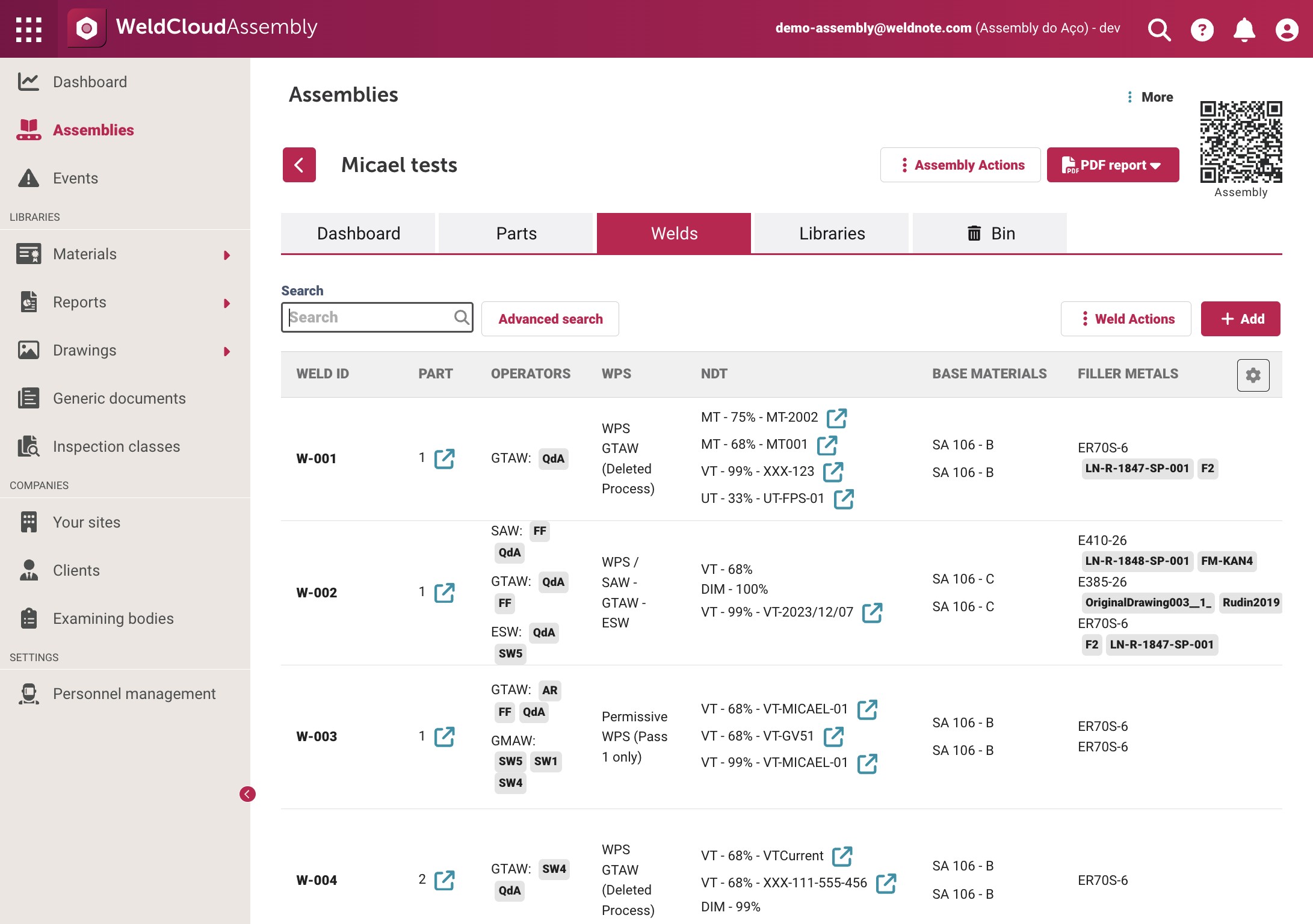

2. Click the "Search" field to find the weld

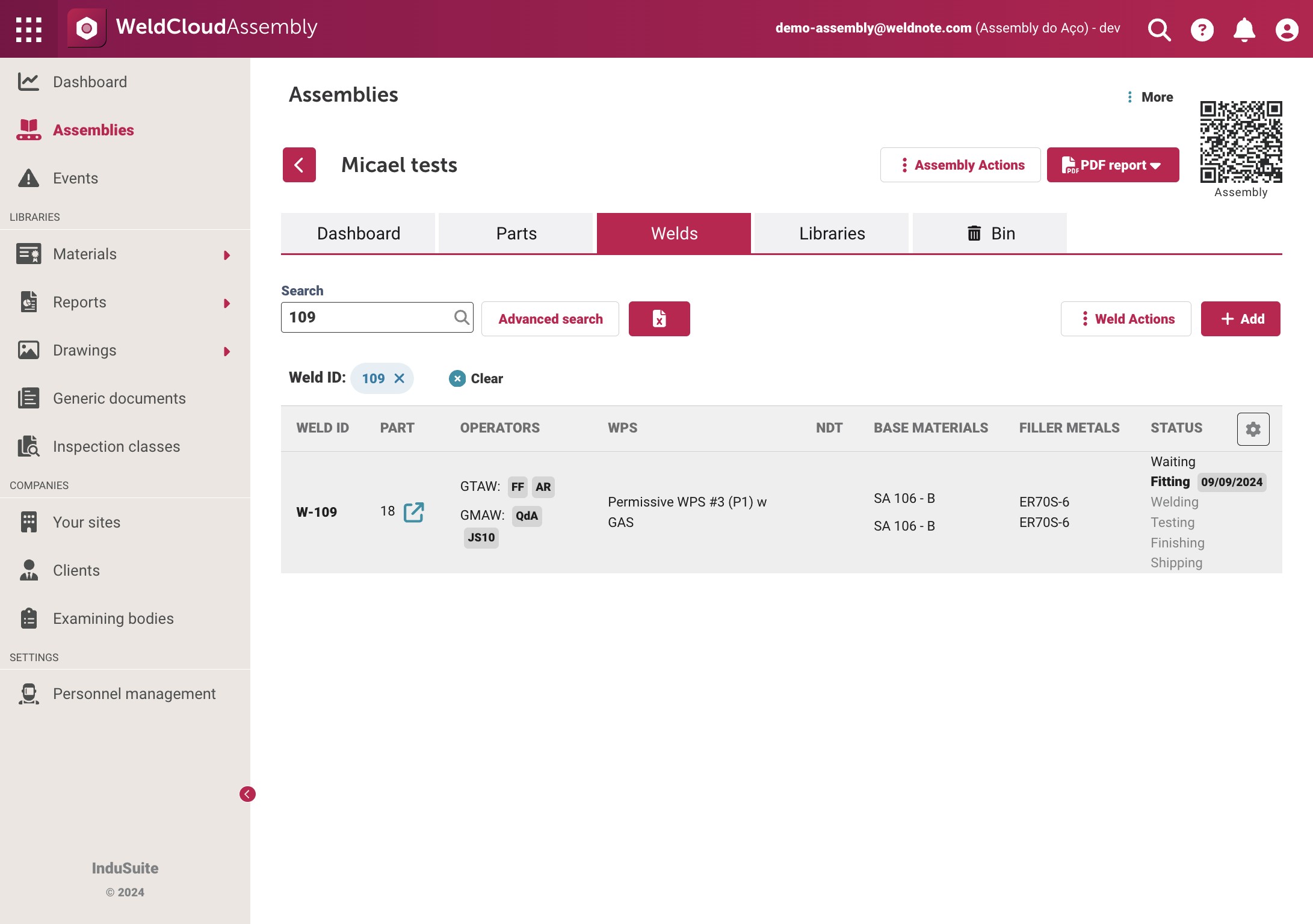

3. Select the weld from the search results

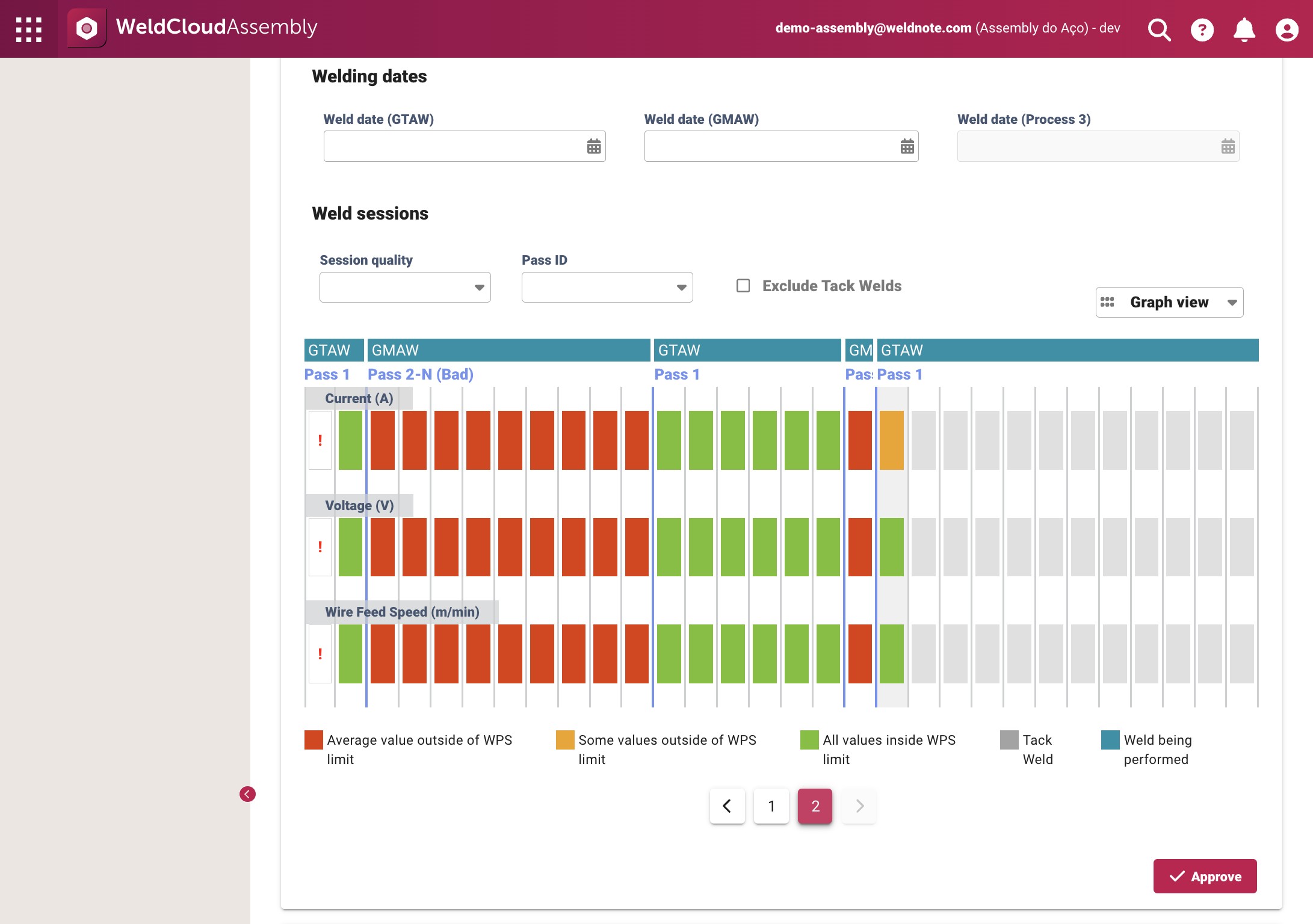

4. Scroll down to the "Welding" Stage and select the Weld Session you want to check

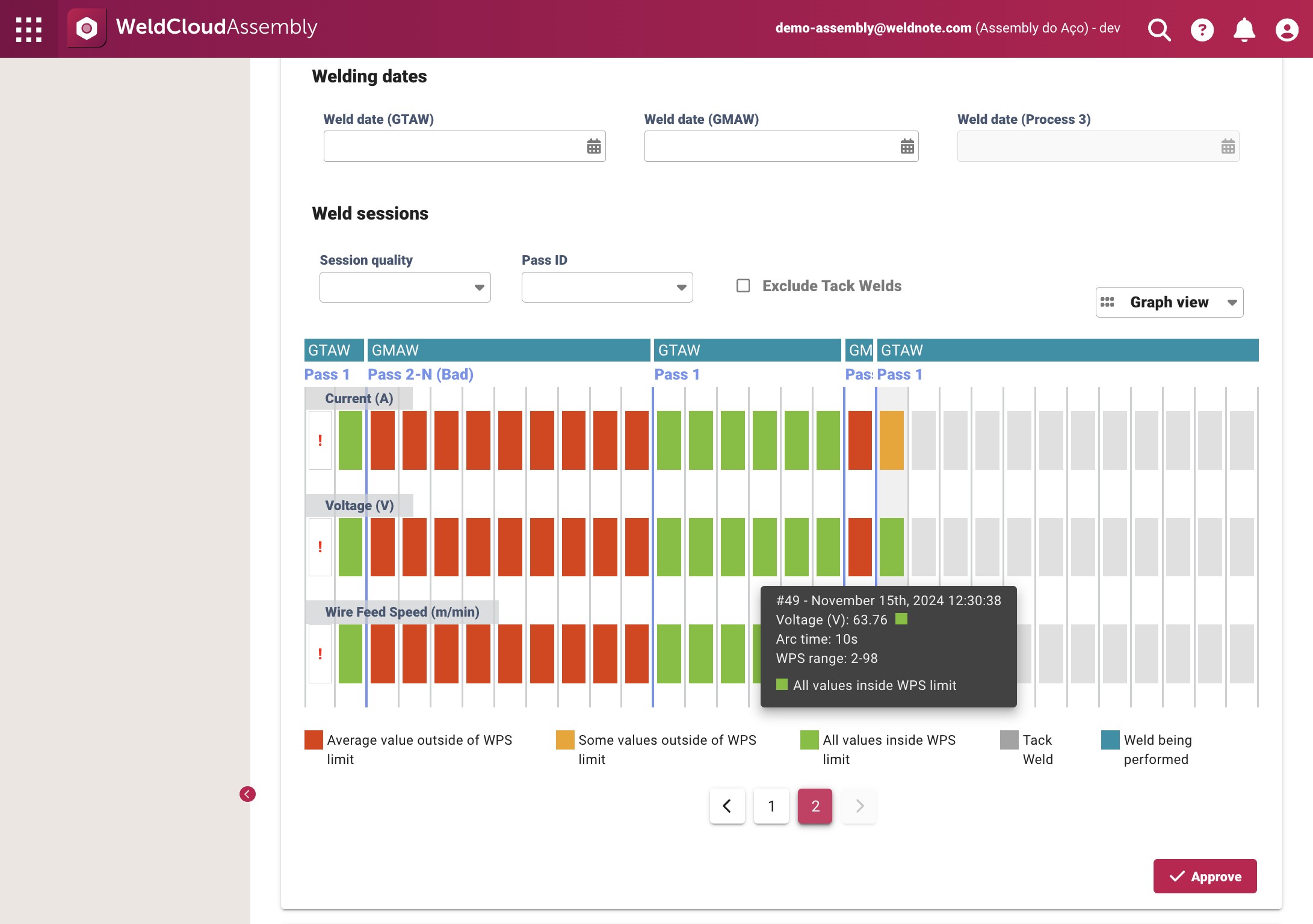

5. Hover your mouse pointer to check the details of this Weld Session, then click on it to see more detail

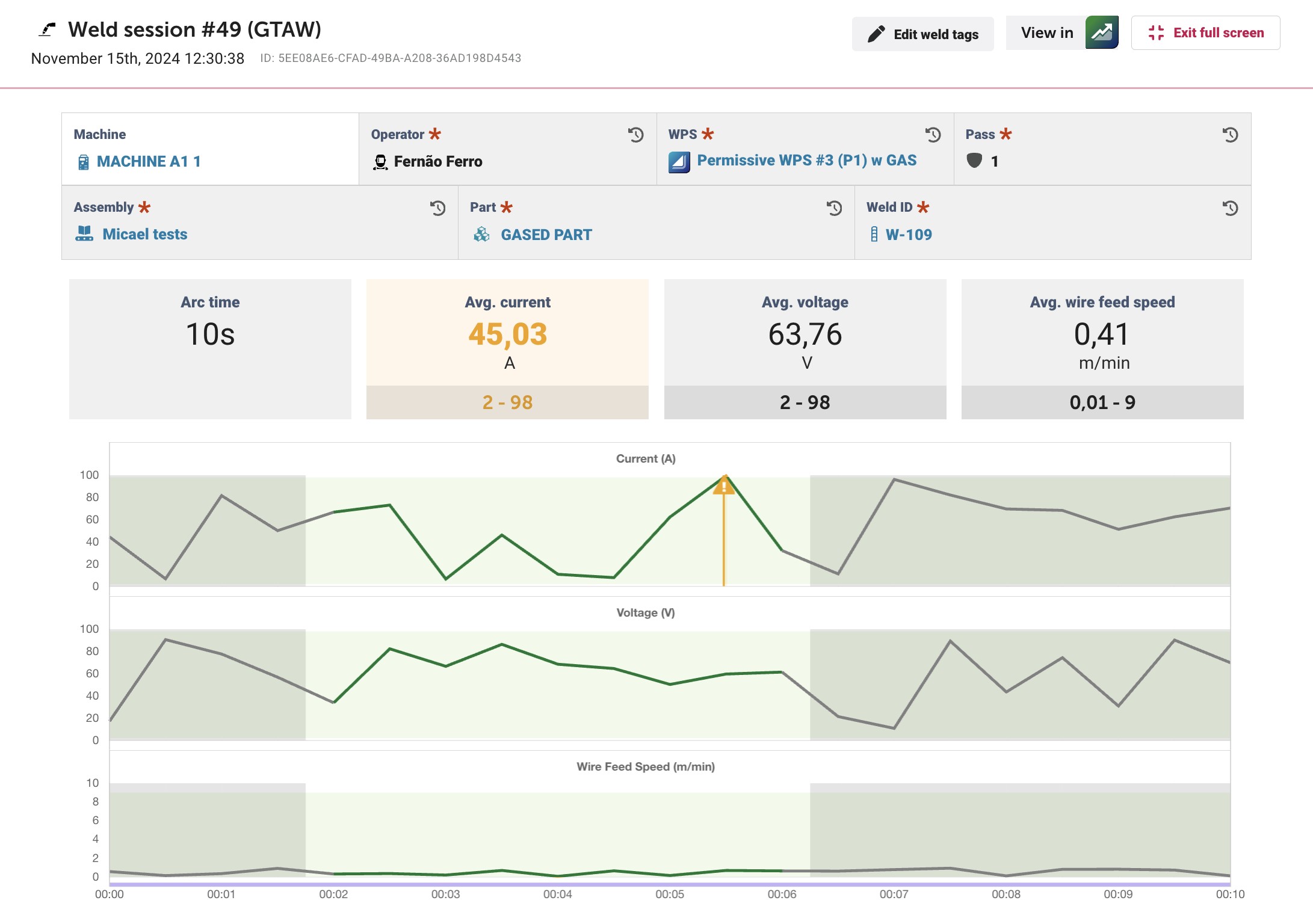

6. Once inside, compare the actual welding parameters to the WPS's range

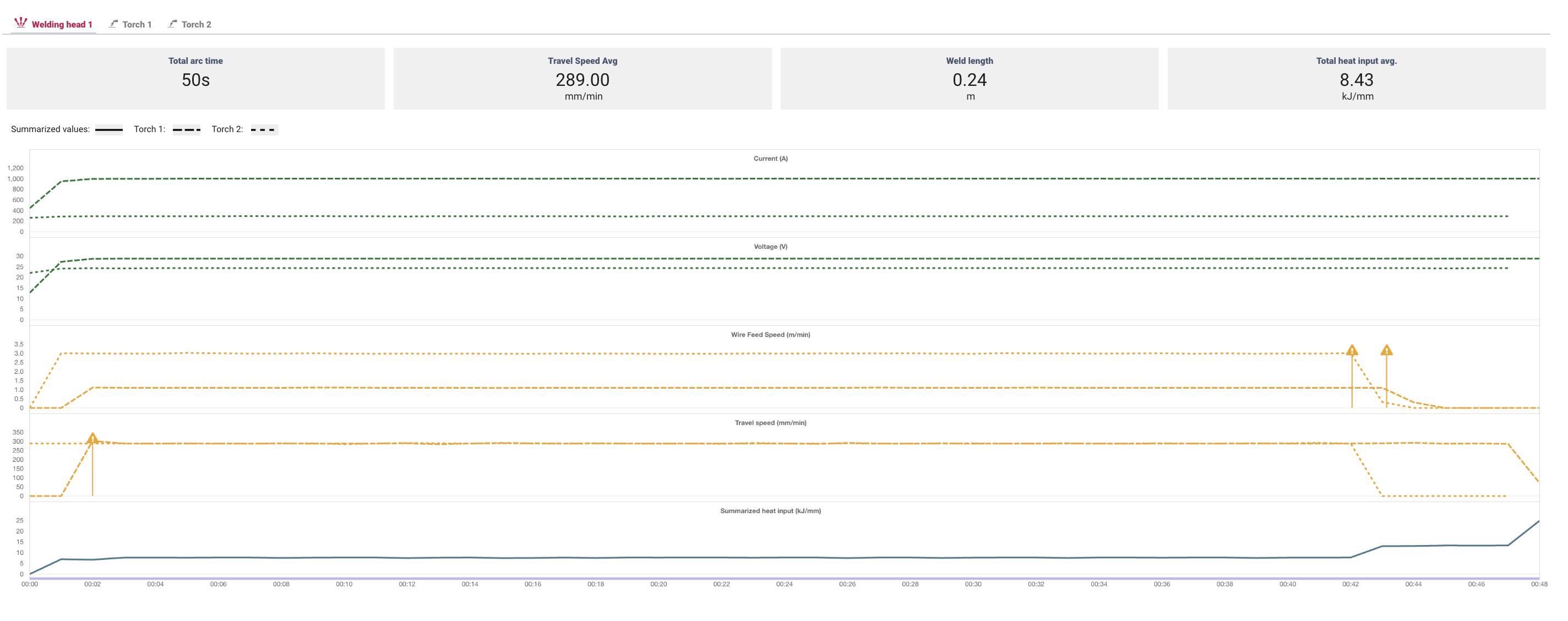

7. You can do the same for Multi-Torch weld sessions — check all torches at once, or individually by selecting the desired one







Updated on: 17/07/2026
