Connecting WeldCloud Link to a WeldCloud-Enabled Device

The WeldCloud Link app leverages the Bluetooth functionality of the Android device it is installed on to establish communication with WeldCloud-enabled equipment. This allows for seamless integration and efficient connectivity between the app and the equipment.

Step-by-Step Connection Process:

1. Device Scanning: WeldCloud Link automatically scans for nearby WeldCloud-enabled devices within Bluetooth range.
2. Device Selection: From the list of detected devices, simply select the one you wish to connect to.

Please follow below instructions for further details

WeldCloud Link Connect to WeldCloud enabled equipment

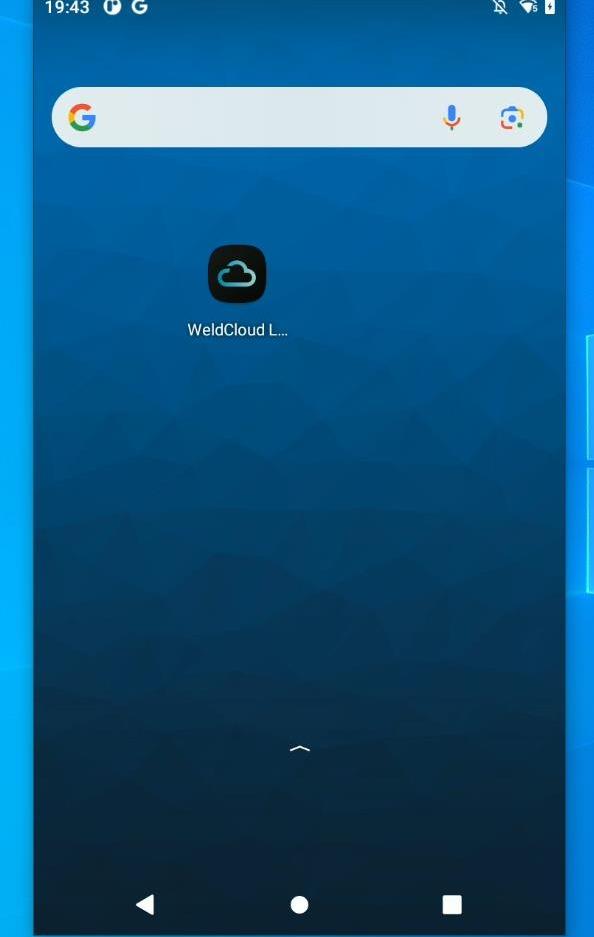

1. Open WeldCloud Link app

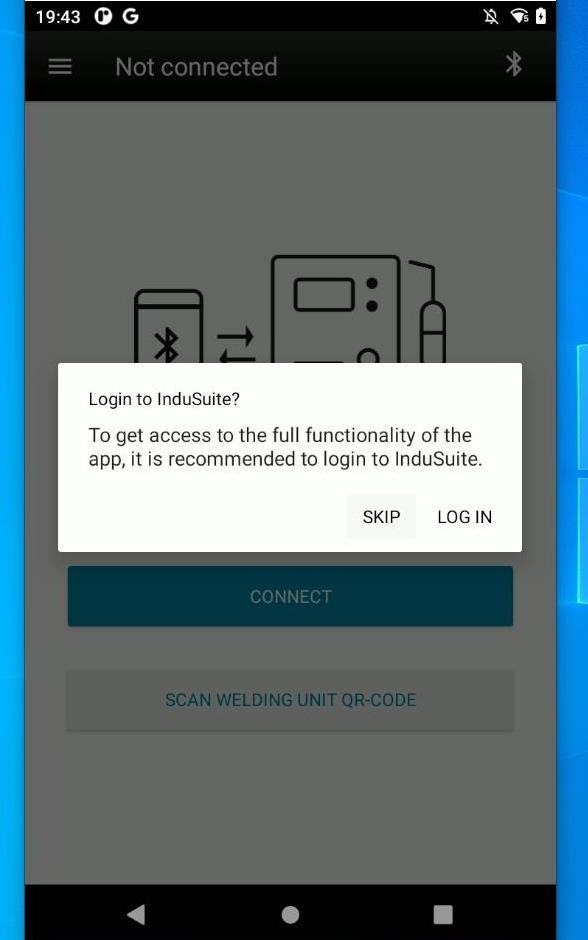

2. Tap LOG IN if you have a WeldCloud account or SKIP

3. Click Connect

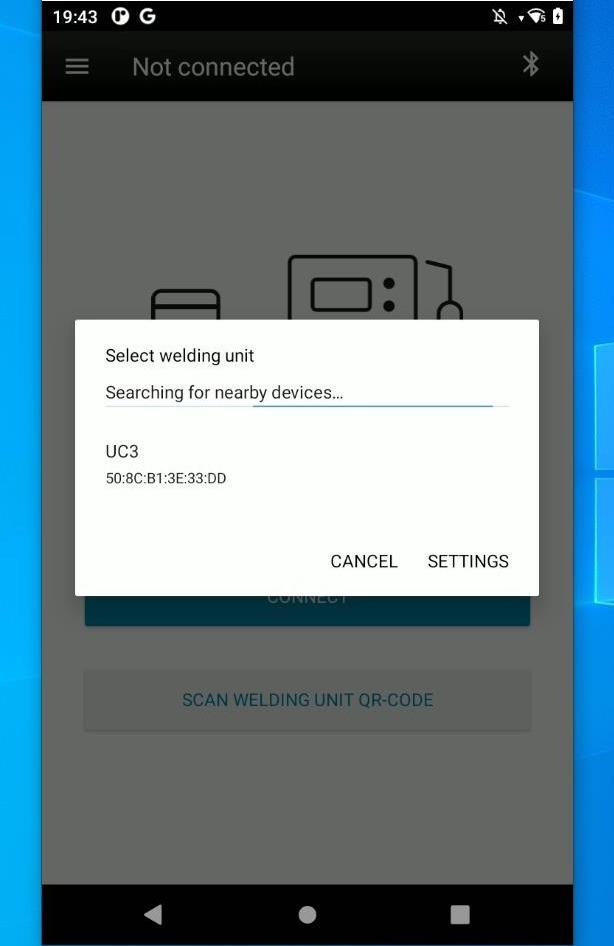

4. Select the WeldCloud enabled device you want to connect to

5. WeldCloud Link app will pair with the device and home page will open

Quick Connection via QR Code:

For faster setup, you can scan a QR code that encodes the Bluetooth MAC ID of the WeldCloud-enabled equipment. This eliminates the need to manually search or select the device from a list.

• Generating Custom QR Codes: If a QR code is not readily available, you can generate one yourself using any online QR code generator. Ensure that the format adheres to the standard Bluetooth MAC address format, such as: A1:B2:C3:D4:E5:F6
• Using Pre-Provided QR Codes: If you are using a Universal Connector, the box typically includes a pre-generated QR code. You can use this code for quick and easy pairing.

Please follow below instructions for further details

WeldCloud Link scan to connect

1. Open WeldCloud Link app

2. Tap LOG IN if you have a WeldCloud account or SKIP

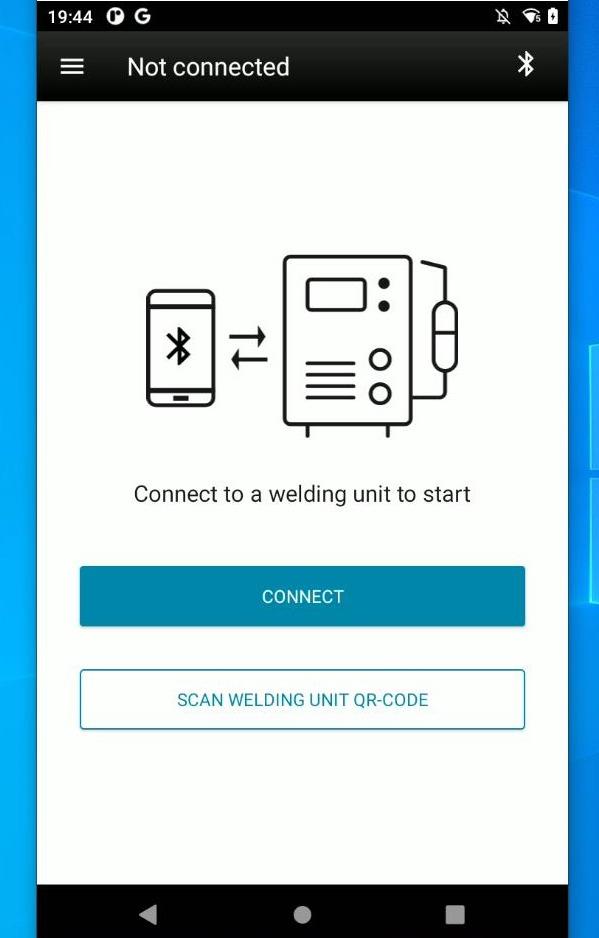

3. Click SCAN WELDING UNIT QR-CODE

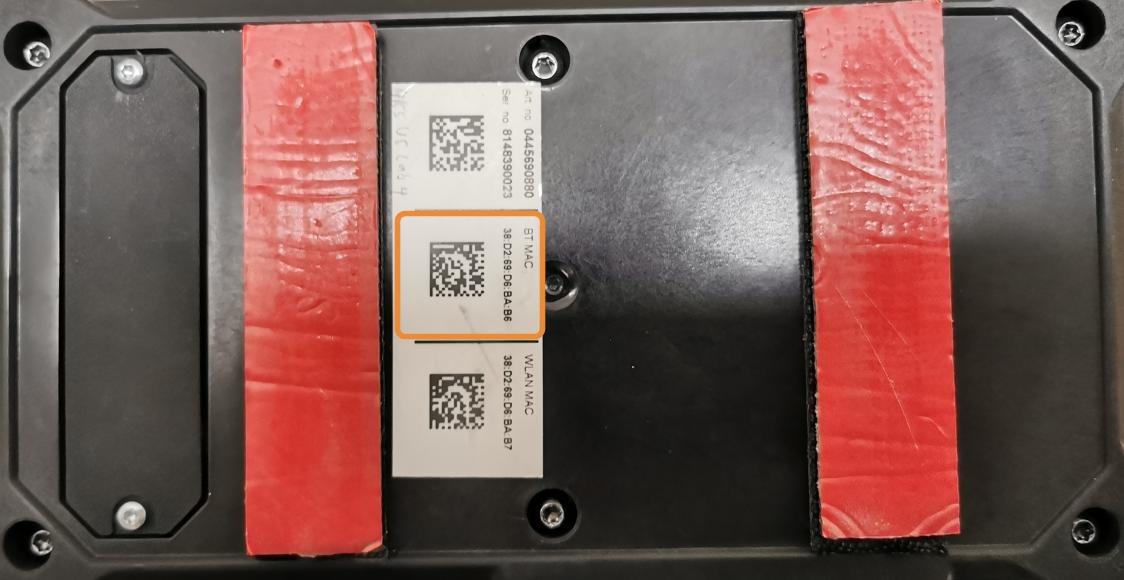

4. Scan Bluetooth module MAC ID to quickly connect to your WeldCloud enabled equipment. On Universal Connector, you can find it on the back of the electronic box module...

5. or on a separate sticker delivered with it

6. For other WeldCloud enabled equipment you could create QR-Code using free online generators

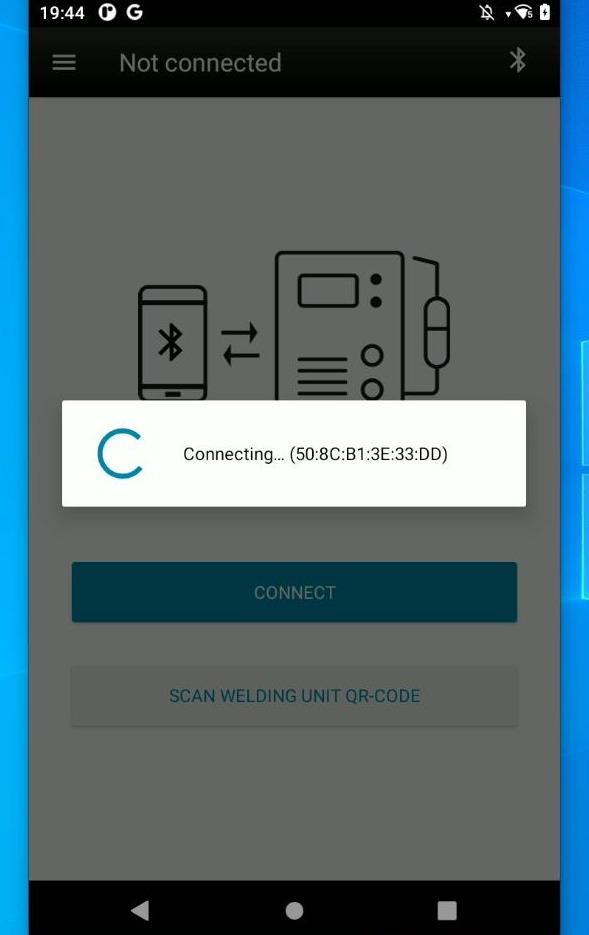

7. After scanning the QR-Code, WeldCloud Link will automatically connect and home page will open

By following these methods, you can efficiently connect the WeldCloud Link app to your equipment, ensuring a smooth and productive user experience.

`.

Updated on: 09/07/2026
